Furniture Quality Woodwork

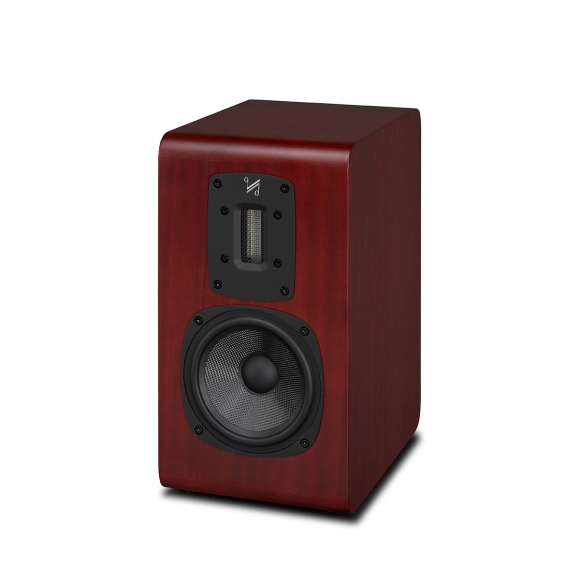

Beautifully presented with rounded top edges at the front and rear, each speaker cabinet uses a sandwich construction of alternate layers of MDF and high-density particleboard to reduce panel resonance to below the level of audibility.

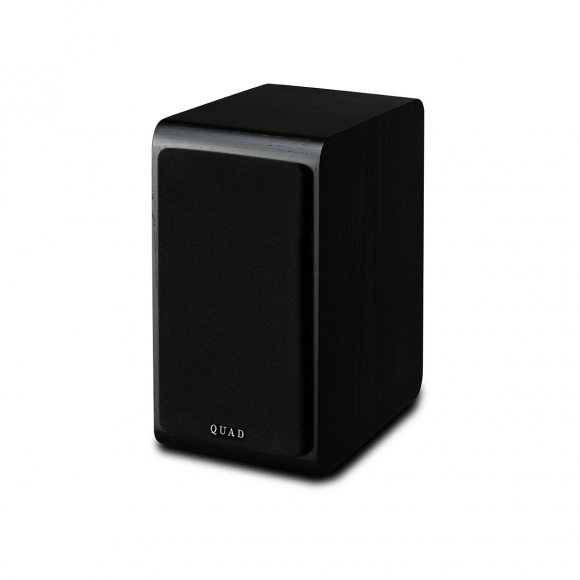

Aesthetically, the look is classically Quad, yet subtly updated, available initially in black or sapele mahogany wood veneers.
Delicate Sound, Powerful Delivery

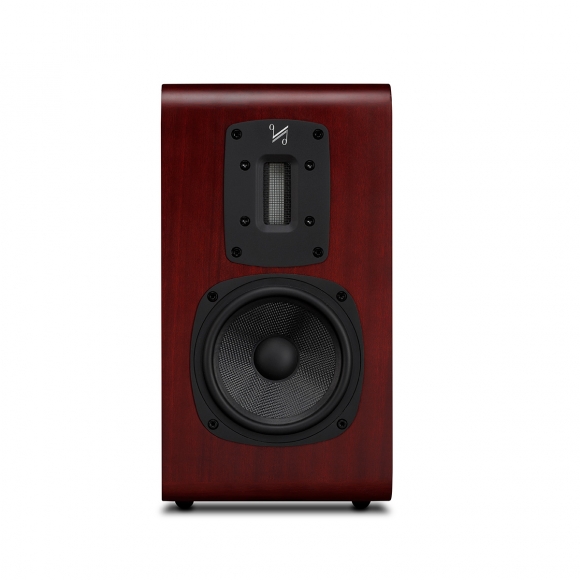

All S Series models sport a bespoke ribbon treble unit, delivering effortlessly extended high frequencies that are audibly superior to those supplied by typical dome tweeters.
While many ribbon drivers are delicate, easily prone to burning out if overpowered, the new ribbon unit developed for the S Series is a thoroughly modern affair, utilising the latest techniques and materials. The ribbon itself is a sandwich construction, making it robust enough to handle high-powered amplifiers, and is fully immersed in a powerful magnetic field so that it accomplishes its dual role of being both the voice coil and sound radiator.
As well as delivering excellent transient response and superb musical detail, the sound from this ribbon unit is smooth right up to the highest musical overtones beyond the limits of human hearing. Controlled directivity maintains this sound quality over a wide horizontal arc to cover all listeners whilst vertical dispersion is tailored to avoid floor and ceiling reflections, resulting in the purest high frequency performance at the listening seat.
ABR Driver Design

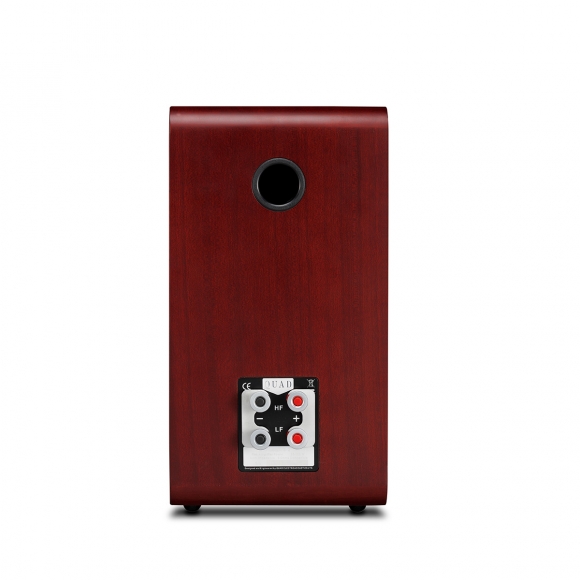

The ribbon tweeter is aligned with Quad's Kevlar-coned bass and midrange drivers through sophisticated crossover networks. While the stand mount models use carefully tuned, rear-firing reflex ports to augment the bass, the floor standers are unusual in incorporating three ABRs (Auxiliary Bass Radiators) in place of a port. These passive, rear-firing bass units support the main drivers to extend bass response down to 35Hz whilst maintaining an accurate and articulate rendition of instrument fundamentals.
General description 2-way bookshelf speaker
Enclosure type vented box loudspeaker
Transducer complement 2-way
Bass / Midrange Driver 5"(125mm)woven Kevlar cone
Treble driver 12 x 45 mm True Ribbon
AV shield No
Sensitivity (2.83V @ 1m) 87dB
Recommended amplifier power 25-150W
Peak SPL 108dB
Nominal impedance 8Ω Compatible
Minimum impedance 4.5Ω
Frequency response (+/-3dB) 48Hz ~ 22kHz
Bass extension (-6dB) 37Hz
Crossover frequency 3kHz
Cabinet Volume (in litres) 8.15L
Dimensions (H x W x D) 330 x 180 x (260+30)mm
