Innuos
ZENmini Mk3
ZENmini Mk3
The gateway server with all the full benefits of innuOS, now with improved connectivity and a new upgrade path for even greater flexibility. Ideal for simple integration into multi-room systems or for those making the first step to a dedicated audio server.
- CD Ripper, NAS and Streamer
- Compact design with quiet, fanless operation
- Versatile HiFi connectivity with analog and digital outputs
- Roon Core and Endpoint
- Custom audio treated components
- Upgradeable with Linear Power Supply
Specifications
AUDIO OUTPUTS
Digital Output
USB 2.0 supporting USB Audio Class 2, DoP, Native DSD and MQA
Coaxial S/PDIF up to 24bit/192KHz
Optical S/PDIF up to 24bit/96KHz
Analogue Output
RCA Analogue up to 24bit/192KHz

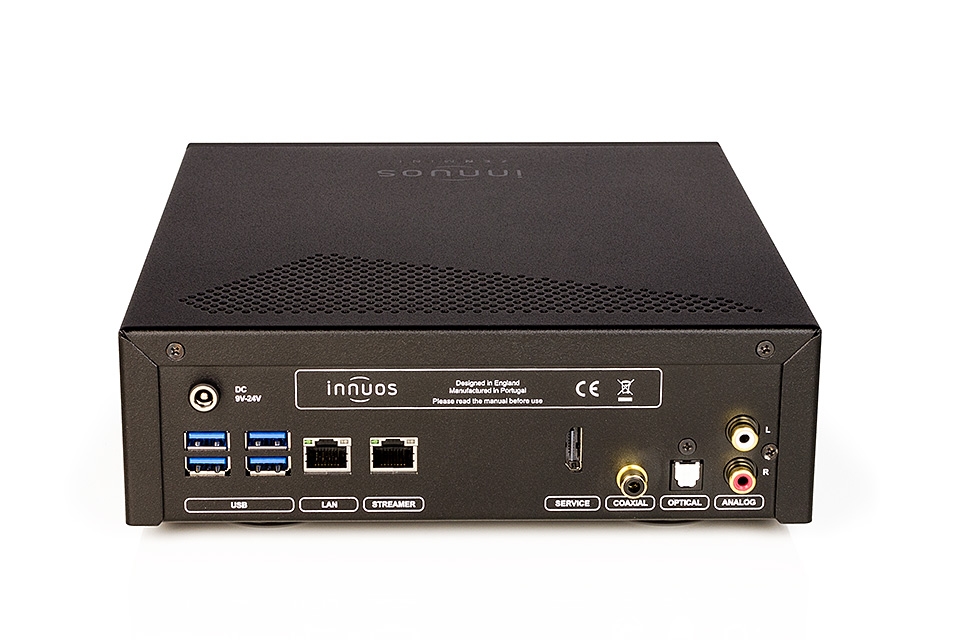

CONNECTIVITY
Ethernet
2 x rear panel RJ45 – Bridged Gigabit Ethernet
USB
4x USB 3.0
FORMATS
CD Formats - Red Book
Disc Compatibility - CD, CD-R, CD-RW
Audio format for stored CDs - FLAC (zero compression), WAV
Audio Formats Supported for streaming and playing - WAV, AIFF, FLAC, ALAC, AAC, MP3, MQA on supported DACs
SAMPLE RATES
Sample Rates - 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4KHz. 192kHz, 352.8KHz, 384KHz , up to DSD128 via DoP, Native DSD on selected DACs
Bit Depths - 16bit, 24bit, 32bit
USER CONTROL INTERFACES
Web Interface - Web Browsers from iOS, Android (4.0 and up) or up-to-date Windows and OS X browsers
Mobile - App for iPhone/iPad, Android and Windows 10
HARDWARE
CD/DVD drive - TEAC Slot-loading drive
Hard Drive - 1TB WD Red HDD
CPU - Intel Quad Core N4200
Memory - 4GB DDR3
STREAMING AND CD STORAGE
UPnP/DLNA - Integrated UPnP Server
Streaming Services - Qobuz, Spotify Connect, Tidal, Internet Radio
Roon Compatibility - Roon Core and Roon Bridge
Average CD Storage Time - 5 minutes
CD Metadata - FreeDB, MusicBrainz, Discogs, GD3
Compatible Music Systems - Sonos Multi-room Wireless Music System DLNA/UPnP compatible streamers USB DACs complying to USB Audio Class 2 USB DACs supporting DSD over DoP protocol Selected USB DACs supporting Native DSD
REQUIREMENTS
Network
Internet connection to access album metadata when storing CDs, Internet Radio, Streaming Services and software updates
Network router with at least one available ethernet port
Premium subscription required for some streaming services such as Spotify, Qobuz and Tidal
Recommended App - (USB Connection Only) iPeng 9 (iOS), OrangeSqueeze (Android), Squeeze Control (Windows 10)
POWER
Mains Supply - Low ripple Power Adapter, 12V 5A, CEC Level V efficiency
Power Consumption - 10W when idle, 15W peak
PHYSICAL
Dimensions - 74 x 214 x 240 mm (H x W x D)
Weight - 4,5 Kg
In the box
Innuos ZENmini Mk3 1TB Music Server
AC/DC Power Adapter
Mains Cable
2m Ethernet Cable
Getting Started leaflet
