Tannoy

Autograph Mini

Product Line: .
Product Type: .

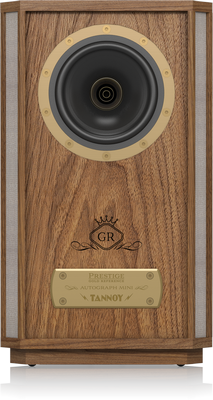

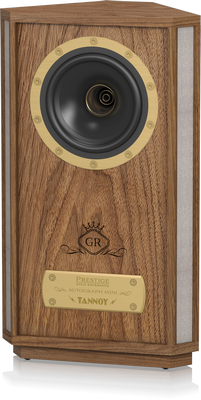

TANNOY AUTOGRAPH MINI

2 Way Stand Mount 4" Dual Concentric HiFi Loudspeaker (Oiled Walnut)

  • A miniature and authentic recreation of the famous 1950?s Tannoy AUTOGRAPH design
  • Dual Concentric driver technology provides class-leading coherence and point-source imaging
  • 4" driver with 200 Watt peak power handling delivers incredible dynamics for the size of enclosure
  • Point source Tulip Waveguide with symmetrical dispersion for accurate stereo imaging
  • 19 mm titanium dome driver provides exceptional wideband high frequency clarity and articulation
  • Handcrafted, oiled walnut veneered cabinet with solid walnut trim provides a unique and timeless piece of furniture
  • Low frequency paper pulp cone with rubber surround provides natural sounding midrange and excellent bass extension
  • Hard wired crossovers featuring proprietary Tannoy capacitors and low loss laminated core inductors delivering a more natural and cohesive sound
  • Highly conductive, low resistance internal wiring maximises signal transparency
  • High density wood cabinet provides extreme rigidity to control low frequency performance and minimise midrange colouration
  • High loss internal damping panels further minimise cabinet colouration

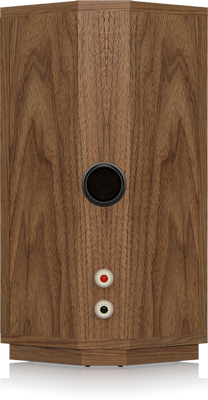

  • Rear ported for a richer and deeper bass response

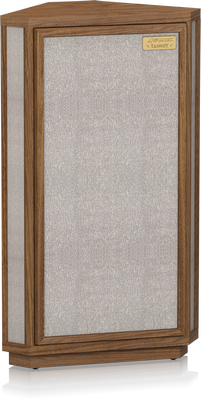

  • Oatmeal grille cloth contributes to legacy styling
  • Tannoy - 90 years of British sound heritage and innovation
  • 10-Year Warranty Program*
  • Designed and manufactured in the U.K.

Specifications

Recommended amplifier power    20 - 100 Watts
Continuous power handling   50/200 Watts RMS Cont/Peak
Frequency response   60Hz - 20kHz -10dB
Sensitivity   88 dB (2.83 Volts @ 1 metre)
Nominal impedance   8 Ohms
Dual Concentric™ high frequency   19mm (0.75") titanium dome with Tulip WaveGuide™
Dual Concentric™ low frequency   100mm (4.50") treated paper pulp cone with rubber surround. 33mm (1.33") edge wound voice coil
Dispersion  90 degrees conical
Frequency   2.3kHz
Type   Passive low loss 2nd order compensated LF, 1st order compensated HF

Enclosure type   Rear ported
Volume   3.5L (213.5 cu.ins")
Dimensions   356 x 209 x 156mm
Weight   4.4kg
Finish   Oiled Walnut
