Turnberry
TURNBERRY

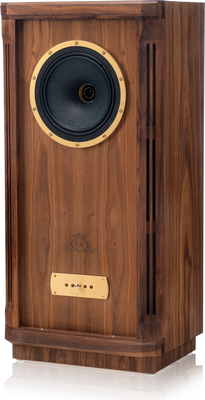

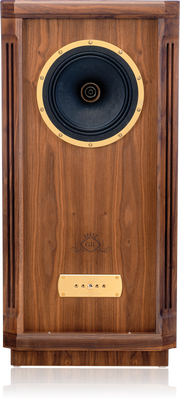

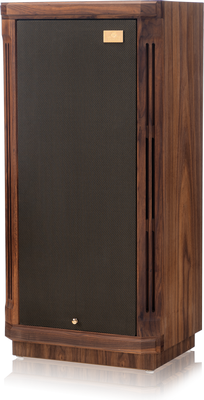

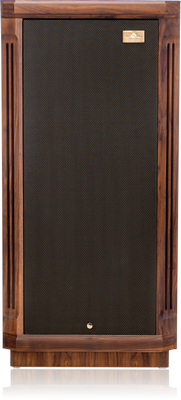

- 2 Way Floorstanding 10" Dual Concentric HiFi Loudspeaker (Oiled Walnut)
- Dual Concentric driver technology provides class-leading coherence and point-source imaging
- 10" highly efficient driver with 93 dB/Watt sensitivity and 400 Watt peak power handling deliver breath-taking dynamics and realism
- Tulip Waveguide with 33mm aluminium-magnesium dome enhances the point source symmetrical dispersion properties, providing exceptional high frequency clarity and articulation
- Low frequency paper pulp cone with twin roll fabric surround provide natural sounding midrange and bass transient performance
- Handcrafted oiled walnut veneered cabinet with walnut inlays provides a unique and timeless piece of furniture
- capacitors, low loss laminated core inductors and close tolerance wirewound resistors delivering a more natural and cohesive sound

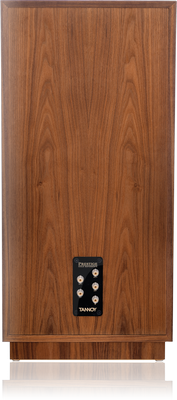

- Custom gold plated bi-wireable binding posts to improve signal transmission and integrity
- Fifth binding post provides grounding to reduce radio frequency interference and improve midrange clarity
- High density particle board cabinet provides extreme rigidity to control low frequency performance
- Distributed Port system gives powerful and extended low frequency performance
- Extensive bracing incorporating DMT (Differential Materials Technology) to couple drivers to cabinets
- Precision machined gold anodised aluminium adjustment panel metal trim complements the aesthetic of the real wood cabinet
- Specially formulated Prestige wood wax provided to keep cabinet in pristine condition
- Tannoy - 90 years of British sound heritage and innovation
- 10-Year Warranty Program*
- Designed and manufactured in the U.K.
Specifications
PERFORMANCE
Recommended amplifier power 20 - 200 Watts
Continuous power handling 100 Watts RMS
Frequency response 34Hz - 44kHz -6dB
Sensitivity 93dB (2.83 Volts @1 metre)
Nominal impedance 8 Ohms (Min 5 Ohms)
DRIVE UNITS
Dual Concentric high-frequency 33mm (1.30") aluminium alloy dome with Tulip Waveguide
Dual Concentric low-frequency 254mm (10.00") treated paper pulp cone with HE twin roll fabric surround. 52mm (2.00) edge wound voice coil
Dispersion 90 degrees conical
CROSSOVER
Frequency 1.3kHz
Type Bi-wired, hard-wired passive, low loss 2nd order low pass, 2nd order high pass
Adjustment +/- 3dB over 1.3kHz to 44kHz shelving
CONSTRUCTION
Enclosure type Dual Distributed Port
Volume 100L (3.5 cu.ft)
Dimensions 950 x 456 x 336mm (37.5" x 18" x 13.25")
Weight 30kg (66 lbs)
Finish Walnut veneer with solid walnut trim and edging. Internally cross braced and heavily damped.
