Tannoy

Revolution XT 8F

Product Line: .
Product Type: .

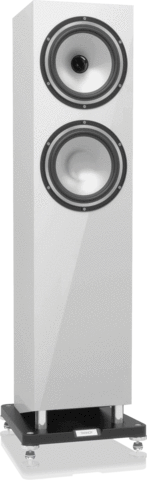

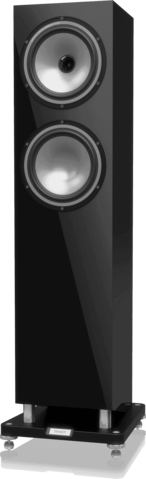

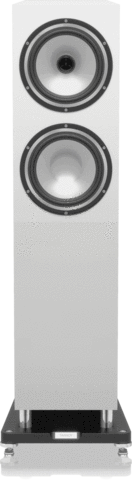

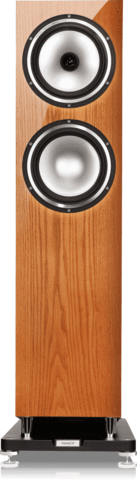

REVOLUTION XT 8F

The new Omnimagnet Dual further refines bass performance with its linear LF response and exceptional timbre accuracy, while its new HF section with Torus-Ogive waveguide delivers smooth HF extension with outstanding imaging. The Revolution XT 8F crossover uses low loss laminated core inductors and audiophile components throughout and further benefits from high purity oxygen free copper (OFC), silver plated wiring.

The 49.4 litre Revolution XT 8F cabinet houses the largest iteration of TANNOY new dual-cavity coupled reflex system, featuring separate cavities coupled internally by tuned ports. Bass energy exits from a tuned down-firing port between the angled base of the cabinet and the integrated plinth.

Specifications

Recommended Amplifier Power (RMS): 25 - 200 W
Continuous Power Handling (Peak RMS): 100 W
Peak Power Handling: 400 W
Sensitivity (2.83 V @ 1 m): 91 dB
Nominal Impedance: 8 ohm
Frequency Response (-6 dB): 34 Hz - 32 kHz
Drivers: Dual Concentric™ High Frequency (25 mm (1") Linear PEI dome with Torus Ogive WaveGuide and Omnimagnet technology), Dual Concentric™ Low Frequency (200 mm (8") multi-fibre paper 44 mm (1.75") voice coil)
Bass Driver: 200 mm (8") multi-fibre paper pulp cone with rubber surround. 44 mm (1.75") edge wound voice coil
Crossover Frequency: 250 Hz and 1.8 kHz
Crossover Type:Passive low loss 2nd order low pass, 1st order high pass
Enclosure Type: Downwards ported twin cavity coupled reflex
Volume: 48.8 l (1.72 cu. ft.)
Dimensions H x W x D (incl. plinth): 1080 x 317 x 345 mm (42.5 x 12.5 x 13.6")
Net Weight: 19.9 kg (43.9 lbs)
