Dynaudio

Evoke 20

Product Line: .
Product Type: .

Evoke 20

Brand-new Cerotar tweeter

A 28mm precision-coated soft-dome design derived directly from the award-winning Special Forty and the mighty new Confidence series.

The new motor system uses strontium carbonate Ferrite+ ceramic magnets for improved sensitivity.

The Hexis

An ingenious inner tweeter dome that further smooths out the tweeter's frequency response and minimises resonances – so all you get are the desirable ones. You'll also find Hexis in the all-new Confidence.

New Esotec+ woofers

New long-throw designs for improved frequency response and low-frequency dynamics.

They're all made from MSP – a material we developed in-house and have used in our high-quality drivers for decades.

Timeless Danish design

Simple, clean, traditional, modern and luxurious. All at once. We've made sure Evoke is realistic for, and sympathetic with, real homes and real lives.

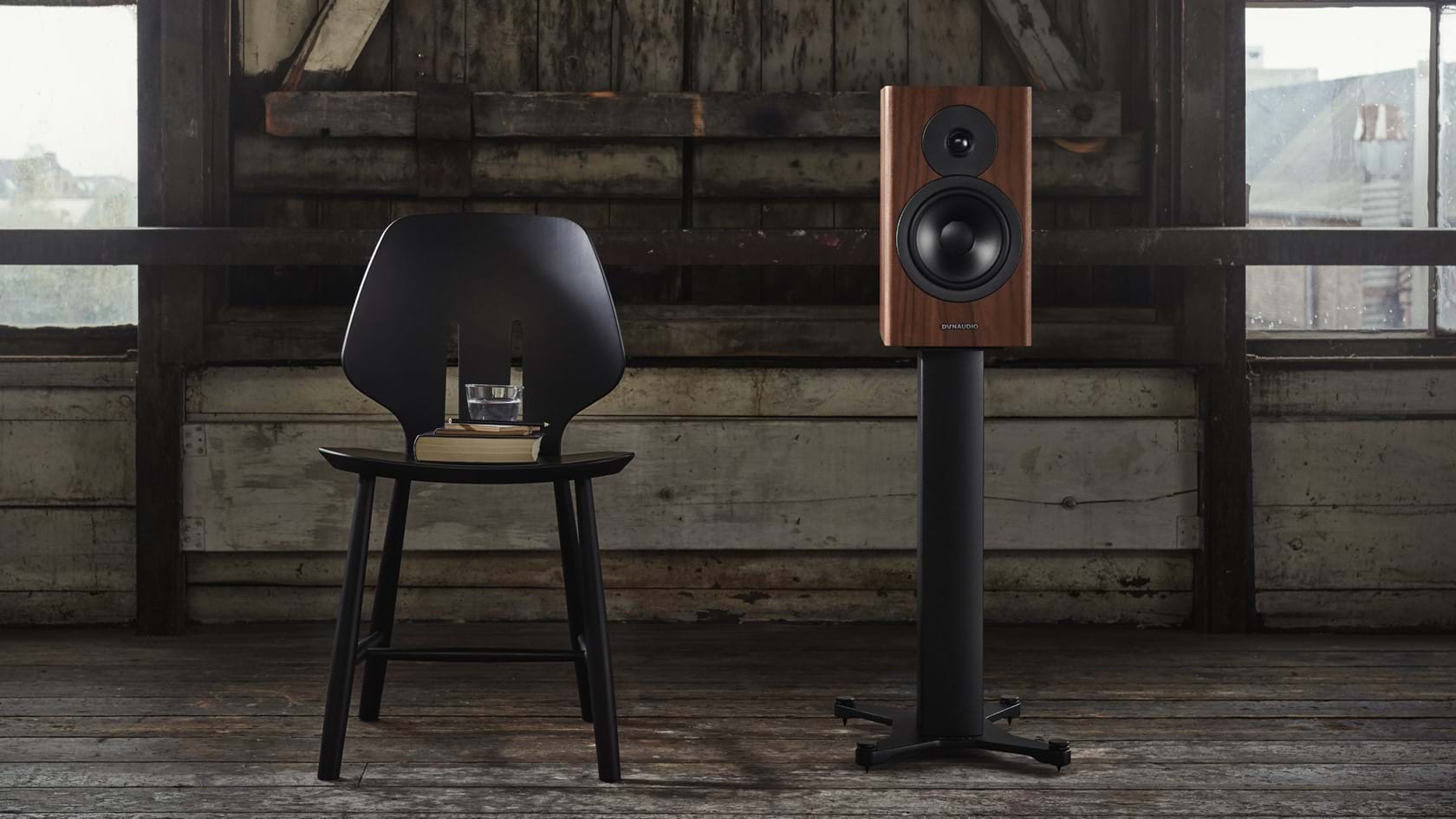

It's available in four finishes: Black High Gloss, White High Gloss, Walnut Wood and Blonde Wood.

Specifications

Sensitivity: 86dB (2.83V/1m)

IEC power handling: 180W

Impedance: 6 Ω

Frequency response (±3dB): 40Hz–23kHz

Box principle: Bass reflex rear ported

Crossover: 2-way

Crossover frequency: 3200Hz

Crossover topology: 2nd order

Woofer: 18cm MSP cone

Tweeter: 28mm Cerotar with Hexis

Weight: 9.9kg/21.8lb

Dimensions (W x H x D): 215x380x307mm
8.5x15.0x12.1in

Dimensions with feet/grille (W x H x D): 215x380x317mm
8.5x15.0x12.5in
